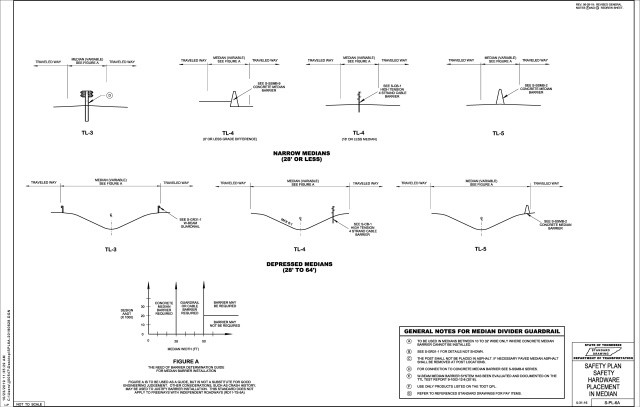

S-PL-6A
SAFETY PLAN SAFETY HARDWARE PLACEMENT IN MEDIAN
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| RD11-TS-5A | DESIGN STANDARDS FOR FREEWAYS WITH DEPRESSED MEDIAN (4 AND 6 LANE) | USED TO JUSTIFY BARRIER INSTALLATION |
| S-CB-1 | CABLE BARRIERS | FOR HIGH TENSION CABLE BARRIER |
| S-GR31-1 | W-BEAM GUARDRAIL | FOR DETAILS NOT SHOWN |
| S-SSMB-2 | 51" SINGLE SLOPE CONCRETE BARRIER WALL | FOR MORE INFORMATION |
| S-SSMB-6 | GUARDRAIL ATTACHMENT TO SINGLE SLOPE CONCRETE BARRIER WALL | FOR CONNECTION TO CONCRETE MEDIAN BARRIER |
| S-SSMB-9 | SINGLE SLOPE BARRIER WALL FOR GRADE SEPARATED MEDIAN | FOR MORE INFORMATION |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 05-31-2016 | 07-05-2017 | 06-28-2019 |
