S-PL-5

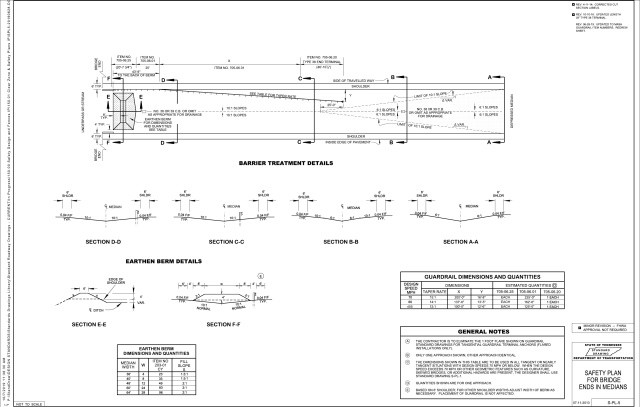

SAFETY PLAN FOR BRIDGE ENDS IN MEDIANS
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-PL-1 | SAFETY PLAN AT ROADSIDE HAZARDS | WHEN THE DESIGN SPEED EXCEEDS 70 MPH OR OTHER GEOMETRIC FEATURES SUCH AS CURVATURE, SKEWED BRIDGES, OR ADDITIONAL HAZARDS ARE PRESENT |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 203-01 | C.Y. | ROAD & DRAINAGE EXCAVATION (UNCLASSIFIED) | |
| 705-06.01 | L.F. | W BEAM GR (TYPE 2) MASH TL3 | |
| 705-06.20 | EACH | TANGENT ENERGY ABSORBING TERM MASH TL-3 | |
| 705-06.25 | EACH | THRIE BEAM BRIDGE TRANSITION MASH TL-3 |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 07-11-2013 | 04-11-2014 | 10-10-2016 | 06-28-2019 |
