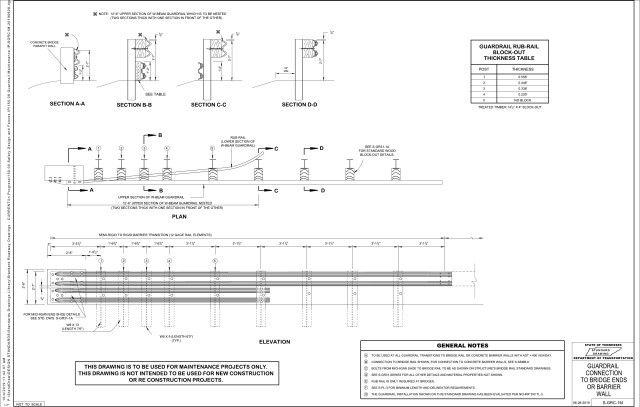

S-GRC-1M
GUARDRAIL CONNECTION TO BRIDGE ENDS OR BARRIER WALL
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-GR31-SERIES | SAFETY DSIGN AND GUARDRAILS - GUARDRAIL DETAILS | FOR ALL OTHER DETAILS AND MATERIAL PROPERTIES NOT SHOWN |
| S-GR31-1A | GUARDRAIL AND BLOCK-OUT DETAILS | FOR STANDARD WOOD BLOCK-OUT AND MICHIGAN END SHOE DETAILS |
| S-PL-3 | SAFETY PLAN: MINIMUM INSTALLATION AT BRIDGE ENDS | FOR MINIMUM LENGTH AND DELINEATOR REQUIREMENTS |
| S-SSMB-6 | GUARDRAIL ATTACHMENT TO SINGLE SLOPE CONCRETE BARRIER WALL | FOR CONNECTION TO CONCRETE BARRIER WALLS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 06-28-2019 |
