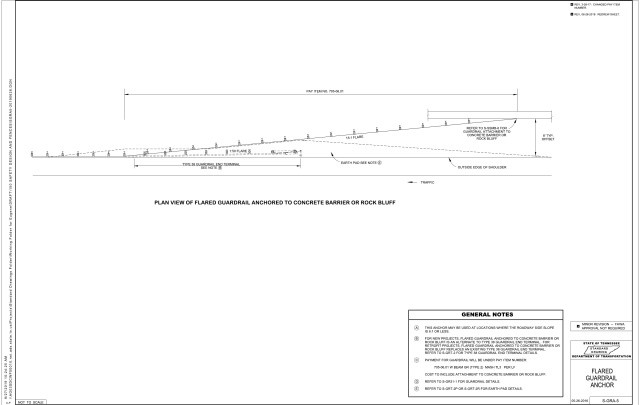

S-GRA-5
FLARED GUARDRAIL ANCHOR
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-GR31-1 | W-BEAM GUARDRAIL | FOR GUARDRAIL DETAILS |
| S-GRT-2 | TYPE 38 GUARDRAIL TERMINAL | FOR TYPE 38 GUARDRAIL END TERMINAL DETAILS |
| S-GRT-2P | EARTH PAD FOR TYPE 38 AND TYPE 21 TERMINALS | FOR EARTH PAD DETAILS |
| S-GRT-2R | EARTH PAD FOR TYPE 38 AND TYPE 21 TERMINALS (RETROFIT) | FOR EARTH PAD DETAILS |
| S-SSMB-6 | GUARDRAIL ATTACHMENT TO SINGLE SLOPE CONCRETE BARRIER WALL | FOR GUARDRAIL ATTACHMENT TO CONCRETE BARRIER OR ROCK BLUFF |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 705-06.01 | LF | W BEAM GR (TYPE 2) MASH TL3 | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 05-26-2016 | 03-28-2017 | 06-28-2019 |
