RP-J-24

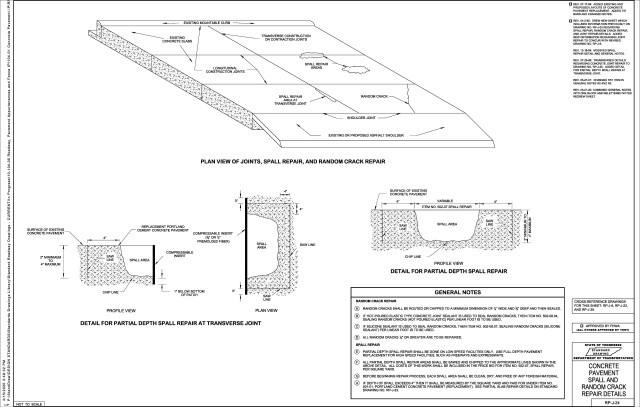

CONCRETE PAVEMENT SPALL AND RANDOM CRACK REPAIR DETAILS
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| RP-J-9 | CONTRACTION AND CONSTRUCTION JOINTS FOR CONCRETE PAVEMENT | FOR JOINT DETAILS |
| RP-J-23 | CONCRETE PAVEMENT REPAIR DETAILS | SEE PARTIAL SLAB REPAIR DETAILS |
| RP-J-25 | CONCRETE PAVEMENT JOINT REPAIR DETAILS | CROSS-REFERENCE DRAWING |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 501-01 | S.Y. | PORTLAND CEMENT CONCRETE PAVEMENT (REPLACEMENT) | |
| 502-07 | S.Y. | SPALL REPAIR | |
| 502-08.04 | LF | SEALING RANDOM CRACKS (HOT POURED ELASTIC) | |
| 502-08.07 | LF | SEALING RANDOM CRACKS (SILICONE SEALANT) |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 07-17-1984 | 04-02-1990 | 12-18-1994 | 07-29-1996 | 05-27-2001 | 05-01-2020 |
