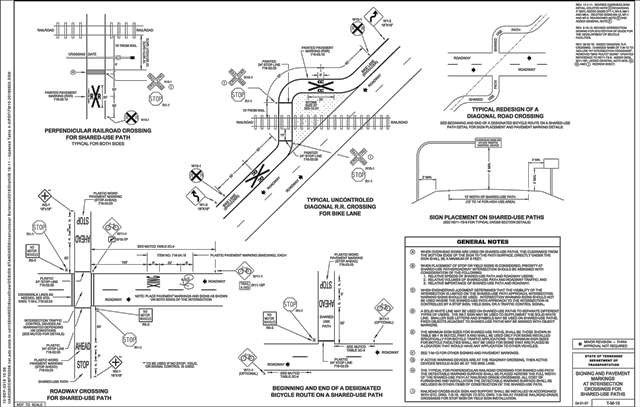

T-M-10
SIGNING AND PAVEMENT MARKINGS AT INTERSECTION CROSSINGS FOR SHARED-USE PATHS
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| RD11-TS-8 | SHARED USE PATH TYPICAL SECTIONS | FOR TYPICAL CROSS SECTION DETAILS |
| T-M-4 | STANDARD INTERSECTION PAVEMENT MARKINGS | FOR CROSSWALK LINES AS NEEDED |
| T-M-12 | SIGNING AND PAVEMENT MARKINGS FOR BICYCLE LANES ON URBAN ROADWAYS | FOR OTHER SIGNING AND PAVEMENT MARKINGS |
| T-S-16 | GROUND MOUNTED ROADSIDE SIGN AND DETAILS | RAILROAD CROSS-BUCK SIGN AND SUPPORT SHALL BE INSTALLED IN ACCORDANCE WITH T-S-16 |
| T-S-16A | GROUND MOUNTED ROADSIDE SIGN PLACEMENT DETAILS | REFER TO T-S-16A AT PASSIVE RAILROAD GRADE CROSSINGS FOR STOP SIGN OR YIELD SIGN INSTLLATION |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
| 303-10.01 | TON | MINERAL AGGREGATE (SIZE 57) |
| 716-02.03 | L.F. | PLASTIC PAVEMENT MARKING (CROSS-WALK) |
| 716-02.05 | L.F. | PLASTIC PAVEMENT MARKING (STOP LINE) |
| 716-03.03 | EACH | PLASTIC WORD PAVEMENT MARKING (STOP AHEAD) |
| 716-04.18 | EACH | PLASTIC PAVEMENT MARKING (BIKE/XING) |
| 716-05.05 | L.F. | PAINTED PAVEMENT MARKING (STOP LINE) |
| 716-05.10 | EACH | PAINTED PAVEMENT MARKING (RXR) |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 05-01-2007 | 11-01-2011 | 06-15-2012 | 08-02-2018 |
