RD11-TS-8

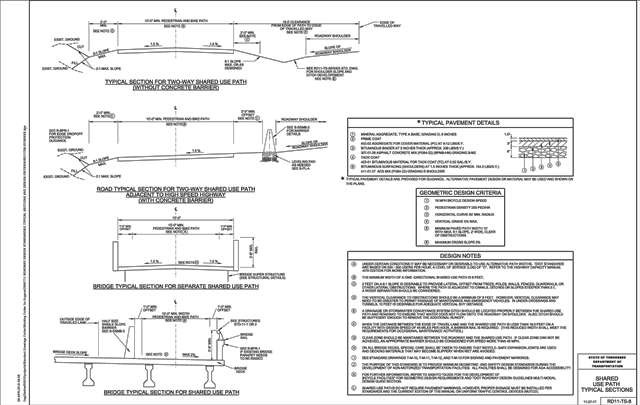

SHARED USE PATH TYPICAL SECTIONS
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-BPR-1 | BIKE/PEDESTRIAN SAFETY RAIL | FOR EDGE DROPOFF PROTECTION GUIDANCE |
| S-PL-4 | SAFETY PLAN FOR BRIDGE PIERS IN CLEAR ZONE | AS NEEDED |
| S-SSMB-2 | 51” SINGLE SLOPE CONCRETE BARRIER WALL | FOR BARRIER DETAILS |
| STD-11-1 | BRIDGE RAILING W/ STRUCTURAL TUBING | AS NEEDED |
| STD-11-2 | STANDARD CONCRETE CLASSIC RAIL | AS NEEDED |
| T-M-10 | SIGNING AND PAVEMENT MARKINGS FOR SHARED-USE PATHS | FOR SIGNING AND PAVEMENT MARKINGS |
| T-M-11 | SIGNING AND PAVEMENT MARKINGS FOR BICYCLE LANES OR ROUTES | FOR SIGNING AND PAVEMENT MARKINGS |
| T-M-12 | SIGNING AND PAVEMENT MARKINGS FOR BICYCLE LANES ON URBAN ROADWAYS | FOR SIGNING AND PAVEMENT MARKINGS |
| T-M-13 | SIGNING AND PAVEMENT MARKINGS FOR BICYCLE LANES | FOR SIGNING AND PAVEMENT MARKINGS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 307-01.08 | TON | ASPHALT CONCRETE MIX (PG64-22) (BPMB-HM) GRADING B-M2 | |
| 402-02 | TON | AGGREGATE FOR COVER MATERIAL (PC) | |
| 403-01 | TON | BITUMINOUS MATERIAL FOR TACK COAT (TC) | |
| 411-01.07 | TON | ACS MIX (PG64-22) GRADING E SHOULDER | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 11-27-2017 |
