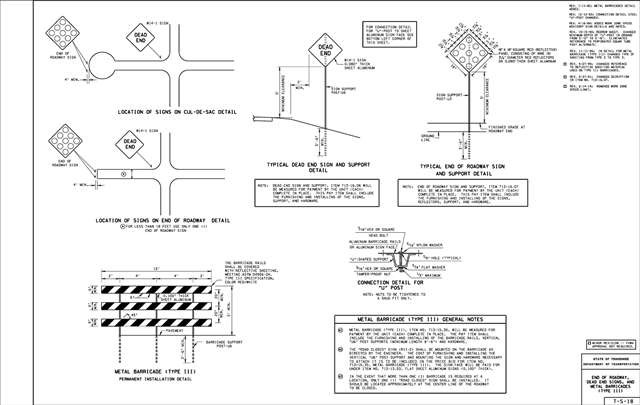

T-S-18
END OF ROADWAY, AND DEAD END SIGNS, METAL BARRICADES (TYPE III)
(Click image to open PDF)
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 713-13.03 | S.F. | FLAT SHEET ALUMINUM SIGNS (0.100" THICK) | |
| 713-15.35 | EACH | METAL BARRICADE (TYPE III) | |
| 713-16.06 | EACH | DEAD END SIGN AND SUPPORT | |
| 713-16.07 | EACH | END OF ROADWAY SIGN AND SUPPORT |
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 01-11-1982 | 12-12-1983 | 04-16-1984 | 10-15-1990 | 11-11-1996 | 05-27-1999 | 05-27-2001 | 02-14-2014 |
If you find any mistakes, missing information or have a question, contact:
Traffic Operations Division
Stephen K. Bryan, P.E., PTOE
1200 James K. Polk Building
Nashville, TN 37243
ph. 615-741-2152
Steve.Bryan@tn.gov
This Page Last Updated: July 12, 2024 at 11:37 AM
