SD-MSE-1

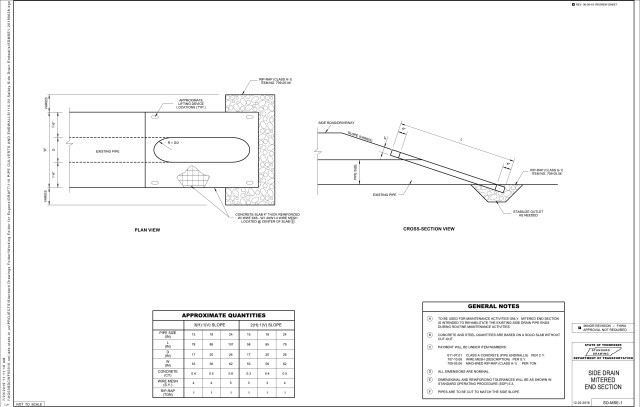

SIDE DRAIN MITERED END SECTION
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 611-07.01 | C.Y. | CLASS A CONCRETE (PIPE ENDWALLS) | |
| 707-10.08 | S.Y. | WIRE MESH (DESCRIPTION) | |
| 709-05.06 | TON | MACHINED RIP-RAP (CLASS A-1) |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 12-22-2016 | 06-28-2019 |
