D-PEW-1

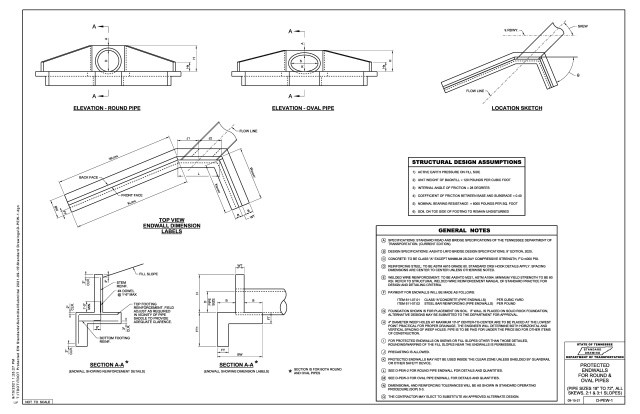

PROTECTED ENDWALLS FOR ROUND & OVAL PIPES (PIPE SIZES 18” TO 72”, ALL SKEWS, 2:1 & 3:1 SLOPES)
(Click image to open PDF)
Latest Revision Note
XX/XX/20XX NEW STANDARD DRAWING
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| D-PEW-2 | PROTECTED ENDWALLS FOR ROUND PIPES DETAILS & QUANTITIES (PIPE SIZES 18” TO 72”, ALL SKEWS, 2:1 & 3:1 SLOPES) | FOR ROUND PIPE ENDWALL FOR DETAILS AND QUANTITIES |
| D-PEW-3 | PROTECTED ENDWALLS FOR OVAL PIPES DETAILS & QUANTITIES (EQU. PIPE SIZES 18” TO 72”, ALL SKEWS, 2:1 & 3:1 SLOPES) | FOR OVAL PIPE ENDWALL FOR DETAILS AND QUANTITIES |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
| 611-07.01 | C.Y. | CLASS A CONCRETE (PIPE ENDWALLS) |
| 611-07.02 | LB. | STEEL BAR REINFORCEMENT (PIPE ENDWALLS) |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 09-15-2021 |
