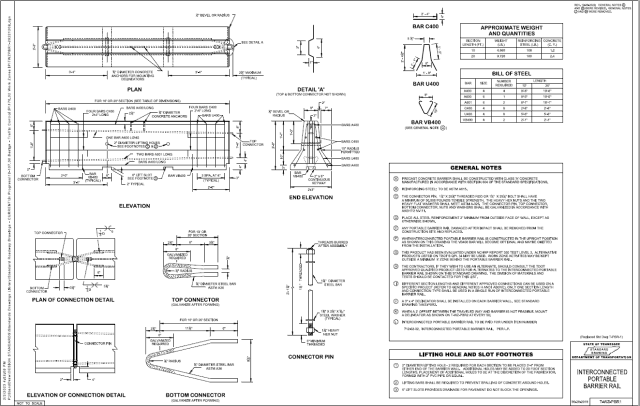

T-WZ-PBR1
INTERCONNECTED PORTABLE BARRIER RAIL
(Click image to open PDF)
Latest Revision Note
12/09/2022 GENERAL NOTES E AND G WERE REVISED. GENERAL NOTES J AND N WERE REMOVED.
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| T-WZ-PBR2 | DETAILS FOR WORK ZONE CHANNELIZATION DEVICES | SEE FOR DETAILS |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 712-02.02 | L.F. | INTERCONNECTED PORTABLE BARRIER RAIL | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS (THE INITIAL STANDARD DRAWING IS BOLD) | ||
|---|---|---|
| 06-28-2019|12-09-2022 |
