T-M-19

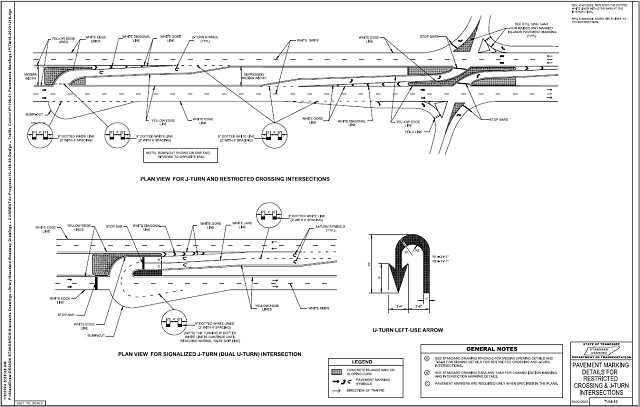

PAVEMENT MARING DETAILS FOR RESTRICTED CROSSING & J-TURN INTERSECTIONS
Click image to Open PDF
Latest Revision Note
01/09/2024 ADDED YIELD LINES AT THE INTERSECTION.
Related Standard Drawing
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| RP-DHO-2 | MEDIAN OPENING DETAILS FOR RESTRICTED CROSSING & J-TURN INTERSECTIONS | FOR MEDIAN OPENING DETAILS |
| T-M-3 | MARKING STANDARDS FOR TRAFFIC ISLANDS, PAVED SHOULDERS AND MEDIANS FOR CONVENTIONAL ROADS | FOR CHANNELIZATION MARKING AND INTERSECTION MARKING DETAILS |
| T-M-4 | STANDARD INTERSECTION PAVEMENT MARKINGS | FOR CHANNELIZATION MARKING AND INTERSECTION MARKING DETAILS |
| T-S-26 | SIGNING PLAN FOR RESTRICTED CROSSING & J-TURN INTERSECTIONS | FOR SIGNING DETAILS FOR RESTRICTED CROSSING AND J-TURN INTERSECTION |
