D-JBS-1

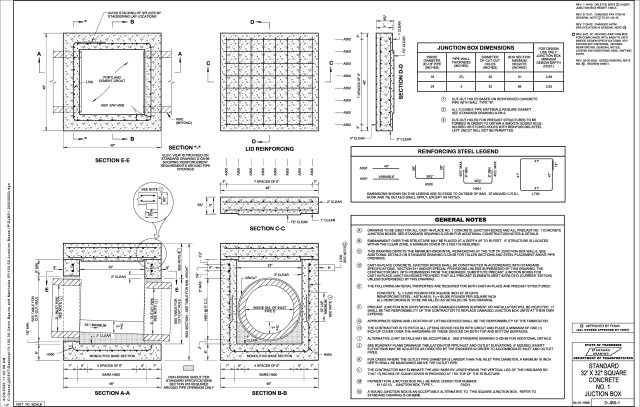

STANDARD 32" X 32" SQUARE CONCRETE NO. 1 JUNCTION BOX
D-JBS-1

(Click image to open PDF)

Related Standard Drawings

DRAWINGDESCRIPTIONREMARKS
D-CB-99MISCELLANEOUS DETAILS FOR RECTANGULAR STRUCTURESREINFORCEMENT REQUIREMENTS AROUND PIPE OPENINGS
D-PB-2STANDARD DETAILS FOR FLEXIBLE PIPE INSTALLATIONGASKET DETAILS FOR FLEXIBLE PIPE


Related Item Numbers

ITEM NO.U/MDESCRIPTIONREMARKS
611-02.10EACHJUNCTION BOX, TYPE 1



Archived Standard Drawings

DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD )
04-01-1998 | 01-19-2000 | 06-10-2001 | 07-29-2002 | 08-01-2012 | 02-20-2020
