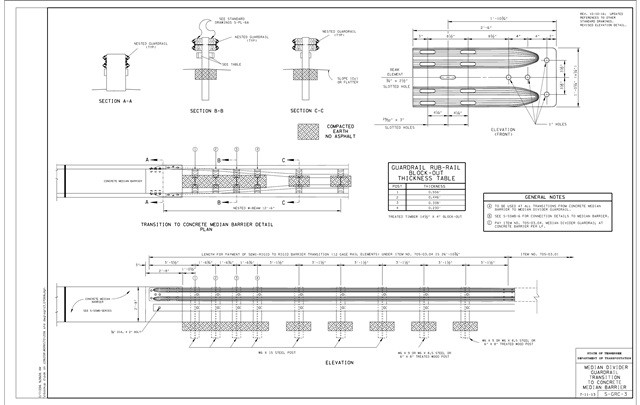

S-GRC-3
MEDIAN DIVIDER GUARDRAIL TRANSITION TO CONCRETE MEDIAN BARRIER
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-PL-6A | SAFETY PLAN: SAFETY HARDWARE PLACEMENT IN MEDIAN | FOR ADDITIONAL DETAILS |
| S-SSMB-6 | GUARDRAIL ATTACHMENT TO SINGLE SLOPE CONCRETE BARRIER WALL | FOR CONNECTION DETAILS TO MEDIAN BARRIER |
| S-SSMB-SERIES | CONCRETE MEDIAN BARRIER | FOR CONCRETE MEDIAN BARRIER |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 705-03.01 | LF | MEDIAN DIVIDER GUARDRAIL, WITH RUB-RAIL (TYPE 2) | |
| 705-03.04 | LF | MEDIAN DIVIDER GUARDRAIL AT CONCRETE BARRIER | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 07-11-2013 | 10-10-2016 |
