S-PL-4A

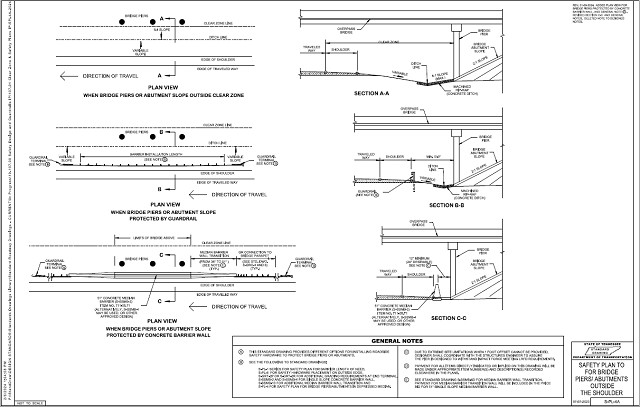

SAFETY PLAN FOR BRIDGE PIERS IN CLEAR ZONE & OUT OF CLEAR ZONE
(Click image to open PDF)
Latest Revision Note
01/09/2024 ADDED PLAN VIEW FOR BRIDGE PIERS PROTECTED BY CONCRETE BARRIER WALL, AND GENERAL NOTE@ . REVISED SECTION C-C AND GENERAL NOTES. DELETED NOTE TO DESIGNED NOTES.
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| S-GR SERIES | Safety Design and Guardrails | IN RARE CASES WHEN A STEEP (GREATER THAN 3:1) FILL SLOPE IS UNAVOIDABLE WITHIN THE SAFETY APPROACH ZONE, A BARRIER WILL BE INDICATED ON PLANS IN ACCORDANCE WITH DESIGN POLICY SET OUT IN STANDARD DRAWINGS |
| S-GR31 SERIES | Safety Design and Guardrails → GUARDRAIL DETAILS | FOR GUARDRAIL POST, RAIL, AND HARDWARE STANDARDS FOR CONSTRUCTION |
| S-GRT SERIES | Safety Design and Guardrails → GUARDRAIL TERMINALS | FOR GUARDRAIL TERMINALS |
| S-PL-1 | SAFETY PLAN FOR BARRIER LENGTH OF NEED | FOR SAFETY PLAN FOR BARRIER LENGTH OF NEED |
| S-PL-6 | SAFETY PLAN SAFETY HARDWARE PLACEMENT ON OUTSIDE EDGE | FOR SAFETY HARDWARE PLACEMENT ON OUTSIDE EDGE |
| S-SSMB-2 | 51” SINGLE SLOPE CONCRETE BARRIER WALL | FOR SINGLE SLOPE CONCRETE BARRIER WALL |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 07-07-2023 | 01-09-2024 |
