T-WZ-PBR2

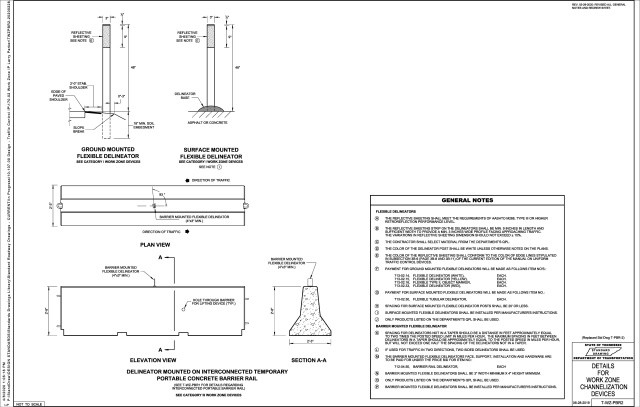

DETAILS FOR WORK ZONE CHANNELIZATION DEVICES
(Click image to open PDF)
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
| T-WZ-PBR1 | INTERCONNECTED PORTABLE BARRIER RAIL | FOR DETAILS REGARDING INTERCONNECTED PORTABLE BARRIER RAIL |
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION | REMARKS |
|---|---|---|---|
| 712-04.50 | EACH | BARRIER RAIL DELINEATOR | |
| 713-02.14 | EACH | FLEXIBLE DELINEATOR (WHITE) | |
| 713-02.15 | EACH | FLEXIBLE DELINEATOR (YELLOW) | |
| 713-02.16 | EACH | FLEXIBLE TYPE II OBJECT MARKER | |
| 713-02.30 | EACH | FLEXIBLE TUBULAR DELINEATOR | |
| 713-02.33 | EACH | FLEXIBLE DELINEATOR (RED) | |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 06-28-2019 | 02-28-2020 |
