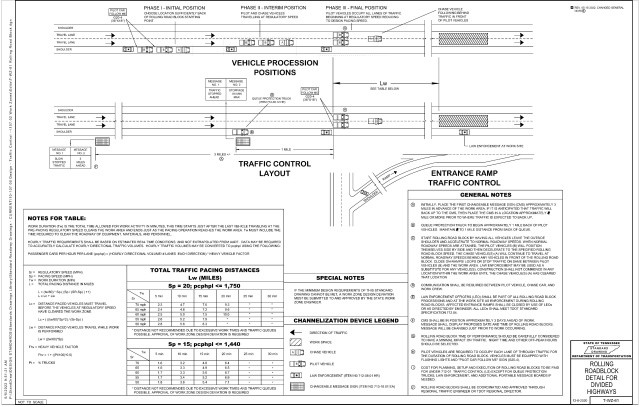

T-WZ-61
ROLLING ROADBLOCK DETAIL FOR DIVIDED HIGHWAYS
(Click image to open PDF)
Latest Revision Note
05/15/2022 CHANGED GENERAL NOTE (E).
Related Standard Drawings
| DRAWING | DESCRIPTION | REMARKS |
|---|---|---|
Related Item Numbers
| ITEM NO. | U/M | DESCRIPTION |
|---|---|---|
| 712-01 | LS | TRAFFIC CONTROL |
| 712-08.01 | DOLL | UNIFORMED POLICE OFFICER |
| 712-08.12 | DAY | QUEUE PROTECTION TRUCK |
| 713-16.01 | EACH | CHANGEABLE MESSAGE SIGN UNIT |
Archived Standard Drawings
| DATES OF EACH ARCHIVED DRAWINGS ( THE INITIAL STANDARD DRAWING IS BOLD ) |
|---|
| 12-08-2020 | 05-15-2022 |
